Aluminum 30x65m Curve Clear Span Tent For Event Sports

Product Details:
Place of Origin: GUANGZHOU CHINA
Brand Name: China Tent
Certification: ISO9001,SGS,Coc
Model Number: AFRAMETENT06
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: From USD 5000 / set
Packaging Details: Wooden case
Delivery Time: 7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month

Detail Information

Frame Material: Aluminum And Hot Dip Galvanized Steel Roof Cover: 850g/sqm Double Coated PVC Fabric
Glass Walls: Tempered Glass 6mm Ceiling Material: Fire Proof Satin Fabric
Life Span: 30 Years Bay Distance: 3m / 5m
Roof Cover Color: Transparent Roof Cover,White Roof Cover Fixing Way: Steel Anchors/ Weight Plate/screws
Connectors: Hot-DIP Galvanized Temperature Resist: -30 Degree Celsius ~ +70 Degree Celsius
High Light:

30x65m Clear Span Tent


65m Curve Span Tent


30m Clear Span Tent

Product Description

Clear Span Curve Tent 30*65m Wihte or Clear Fabric for Event or Sports
Super Standard Tent could be widely used for temporary outdoor exhibitions,wedding parties, festival celebrations,conferences,sports and other events, and also good solution of temporary warehouses, workshops and temporary emergency relief and other purposes. There is no pole inside the tent, 100% interior space could be used. Full line accessories are available, windows sidewalls or plain PVC sidewalls are optional.
Customer Case
Curve tent is a new creative design base on standard a frame clear span tent. Width dimensions varies from 6m to 40m, length can be any times of continuous 5m bay sections. The roof beam is curved shape which makes the tent stronger for snow load and rain load on roof cover, and as strong as to withstand 120km/h wind sped and 0.4kn/square meter snow loading

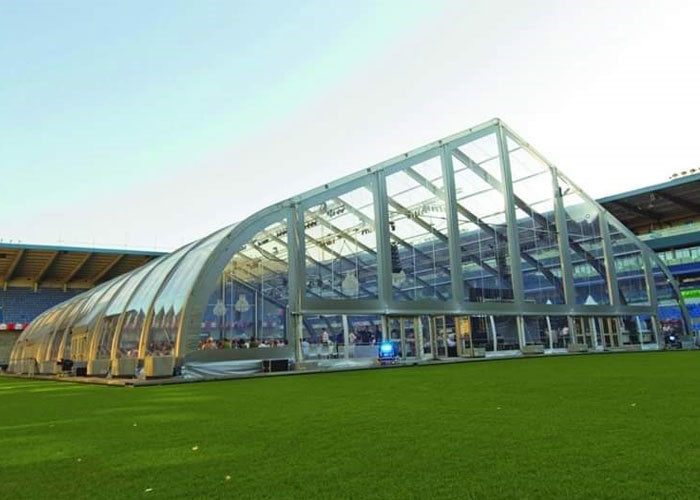

 Aluminum 30x65m Curve Clear Span Tent For Event Sports 0
Our tent is very easy and convenient to assemble,dismantle and move to different place. Therefore, besides for permanent builidng like big exhibition hall tent, hotel tent, tennis court tent, swimming pool tent, curved tent can also use for renting business as event tent, party tent, wedding tent etc.
Aluminum 30x65m Curve Clear Span Tent For Event Sports 1
Besides, if you want the tent looks more luxury, the transparent high tempered glass wall can help you make this dream come true. The Wedding marquee tent with decorations not only just for wedding party, but also widely used for church party, commercial meeting, business party, musical concert, new products show, reception party.
Aluminum 30x65m Curve Clear Span Tent For Event Sports 2
All the tent we developed could appy with the clear fabric if client have demand. If you do not like clear or white color, we also have other color for your choosing. Any color in the Pantone you could choose, but we require the mininum order of 2000 sqm.
Aluminum 30x65m Curve Clear Span Tent For Event Sports 3
1. Frame Part
The main parts are made of aluminum alloy and the spare parts are made of steel.
All aluminum components are technically anodized and all steel parts are well hot-DIP galvanized.
No maintenance required.
Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
All steel connectors including small parts have galvanized finishing above 60um.
Modular character for diverse combination and expansion.
2. Cover part
(1)Surface material:Double PVC opaque self-cleaning cloths
(2)Ridge cloths weight:750G/M2 Surround cloths weight :650G/M2
(3)Inflaming retarding :Internal standard B1
(4)Temperature range:-30-+70°C
(5)Tensile strength warp 2481 N/5cm across warp 2150 N/5cm
(6)Tearing strength warp 188N across warp 322N
Notice:Withstand wind 8-9 level
3. Available sizes:
Clear Span available from 3m to 60m.
Length adjustable by 3m section or 5m section.
For example: 20x50m, there are 10 sections, each section 5m. You can set up any sections according to your clients requirements.
4. Features:
No exterior guy ropes or staking required.
No pole inside,100% interior space be used.
Roof and gable vent is available.
Relocatable, easy to install, dismantle and transport.
Full line accessories available.
Aluminum 30x65m Curve Clear Span Tent For Event Sports 4
5. Common Tent Sizes Recommendation

StylePeople capacitySuggested Tent sizesAreaSide height
Dinner setting
10010x10m100 ㎡2.5m
20010x20m200 ㎡2.5m
30015x20m300 ㎡3m
50015x35m525 ㎡3m
100020x50m1000 ㎡4m
200030x70m2100 ㎡4m


StylePeople capacitySuggested Tent sizesAreaSide height
Theater setting
20010x10m100 ㎡2.5m
30010x20m200 ㎡2.5m
50015x20m300 ㎡3m
100015x35m525 ㎡3m
200020x50m1000 ㎡4m
300030x50m1500 ㎡4m

Kedered roof fabric and sidewalls provide weather-proof tight coverings.
Bar tensioning roof & sidewalls system.
Different brand fabric for option: China Fabric,Ferrari,Sioen,Verseidag.
Aluminum 30x65m Curve Clear Span Tent For Event Sports 5
6. Tent Accessories Options
1) White PVC cover(roof + sidewalls)
2) Clear PVC cover(roof + sidewalls)
3) White PVC wall with clear windows
4) Wall: Glass wall with windows, Sandwich walls, ABS walls, Steel panel walls
5) Door: glass door, metal door, shutter door, sliding door, etc
6) Flooring system
7) Lining and curtain
8) Other suppliers, such as door canopy, chairs, tables, lighting, air condition, etc
Aluminum 30x65m Curve Clear Span Tent For Event Sports 6
Aluminum 30x65m Curve Clear Span Tent For Event Sports 7
7. Tent client feedback
Aluminum 30x65m Curve Clear Span Tent For Event Sports 8
8. packing and shipping
Aluminum frame packed in membrane film;
Hardware packed in woven bag;
Roof and sidewall in professional PVC carry bag;
Customized package.
Aluminum 30x65m Curve Clear Span Tent For Event Sports 9
9. Super Order Process
1. Contact with Super sales team

2. Provide size and usage information to Super sales team

3. Super sales team will Offer design and quote

4. Confirm design and quote

5. Confirm all details and sign a contract

6. Deposit Payment 30%

7. Confirm 3D drawing

8. Start production (Lead time 25 days)

9. Track production and feedback

10. Finish Production

11. Inspect tent quality

12. Balance payment

13. Arrange shipment Yes (Super Arrange)
↓ No (Arranged by buyer)
14. Guide installation Yes (Arrange skilled supervisor)
↓ No (Set up by buyer)
15. Offer After-sale service and follow up for 5 years
