Product Details:
|
|
Place of Origin: | GUANGZHOU CHINA |
---|---|
Brand Name: | China Tent |
Certification: | ISO9001,SGS,Coc |
Model Number: | AFRAMETENT06 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | From USD 5000 / set |
Packaging Details: | Wooden case |
Delivery Time: | 7 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Detail Information |
|||
Frame Material: | Aluminum And Hot Dip Galvanized Steel | Roof Cover: | 850g/sqm Double Coated PVC Fabric |
---|---|---|---|
Glass Walls: | Tempered Glass 6mm | Ceiling Material: | Fire Proof Satin Fabric |
Life Span: | 30 Years | Bay Distance: | 3m / 5m |
Roof Cover Color: | Transparent Roof Cover,White Roof Cover | Fixing Way: | Steel Anchors/ Weight Plate/screws |
Connectors: | Hot-DIP Galvanized | Temperature Resist: | -30 Degree Celsius ~ +70 Degree Celsius |
High Light: | 25x65m Clear Roof Tent,65m transparent marquee tent,25m Curve clear tent |
Product Description
China Curve Printing Frame Clear Span Tent For Exhibition Purpose 25*65m
Super Standard Tent could be widely used for temporary outdoor exhibitions,wedding parties, festival celebrations,conferences,sports and other events, and also good solution of temporary warehouses, workshops and temporary emergency relief and other purposes. There is no pole inside the tent, 100% interior space could be used. Full line accessories are available, windows sidewalls or plain PVC sidewalls are optional.

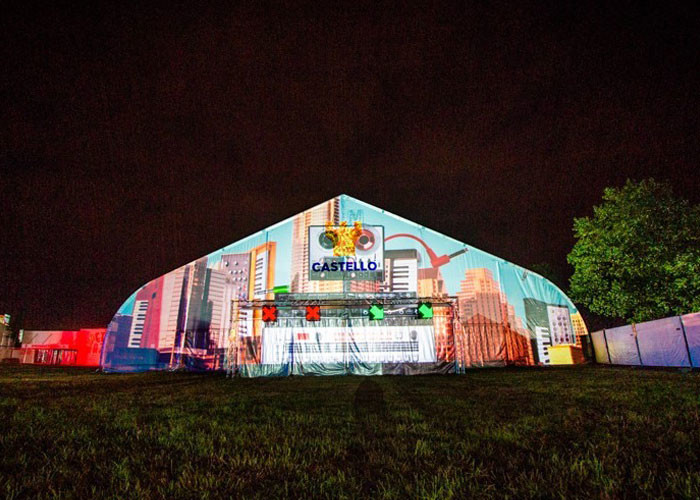

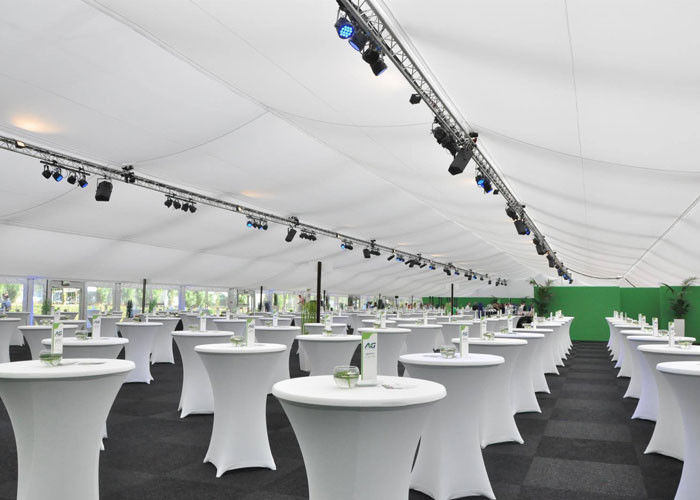

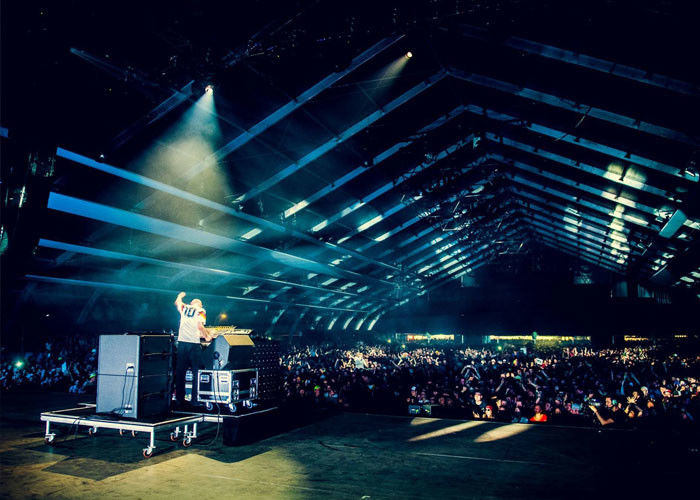

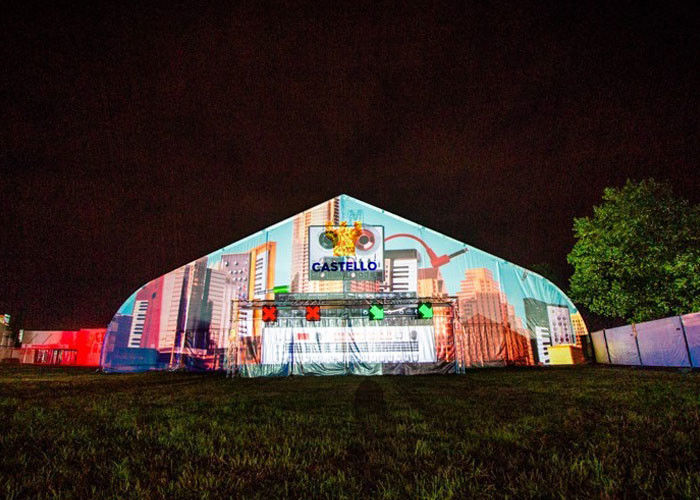

Customer Case
Curve tent is a new creative design base on standard a frame clear span tent. Width dimensions varies from 6m to 40m, length can be any times of continuous 5m bay sections. The roof beam is curved shape which makes the tent stronger for snow load and rain load on roof cover, and as strong as to withstand 120km/h wind sped and 0.4kn/square meter snow loading.
Our tent is very easy and convenient to assemble,dismantle and move to different place. Therefore, besides for permanent building like big exhibition hall tent, hotel tent, tennis court tent, swimming pool tent, curved tent can also use for renting business as event tent, party tent, wedding tent etc.
This curve tent is especially good as exhibition tent. The reason we adopt frame tent for activities is it has more excellent flexibility an feasibility, it can be quickly installed and disassembled, reused, and will not cause any damage to the surrounding environmental during the construction process
1. Frame Part
The main parts are made of aluminum alloy and the spare parts are made of steel.
All aluminum components are technically anodized and all steel parts are well hot-DIP galvanized.
No maintenance required.
Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
All steel connectors including small parts have galvanized finishing above 60um.
Modular character for diverse combination and expansion.
2. Cover part
(1)Surface material:Double PVC opaque self-cleaning cloths
(2)Ridge cloths weight:750G/M2 Surround cloths weight :650G/M2
(3)Inflaming retarding :Internal standard B1
(4)Temperature range:-30-+70°C
(5)Tensile strength warp 2481 N/5cm across warp 2150 N/5cm
(6)Tearing strength warp 188N across warp 322N
Notice:Withstand wind 8-9 level
3. Available sizes:
Clear Span available from 3m to 60m.
Length adjustable by 3m section or 5m section.
For example: 20x50m, there are 10 sections, each section 5m. You can set up any sections according to your clients requirements.
4. Features:
No exterior guy ropes or staking required.
No pole inside,100% interior space be used.
Roof and gable vent is available.
Relocatable, easy to install, dismantle and transport.
Full line accessories available.
5. Common Tent Sizes Recommendation
Style | People capacity | Suggested Tent sizes | Area | Side height |
Dinner setting (Event) |
100 | 10x10m | 100 ㎡ | 2.5m |
200 | 10x20m | 200 ㎡ | 2.5m | |
300 | 15x20m | 300 ㎡ | 3m | |
500 | 15x35m | 525 ㎡ | 3m | |
1000 | 20x50m | 1000 ㎡ | 4m | |
2000 | 30x70m | 2100 ㎡ | 4m |
Style | People capacity | Suggested Tent sizes | Area | Side height |
Theater setting (Church) |
200 | 10x10m | 100 ㎡ | 2.5m |
300 | 10x20m | 200 ㎡ | 2.5m | |
500 | 15x20m | 300 ㎡ | 3m | |
1000 | 15x35m | 525 ㎡ | 3m | |
2000 | 20x50m | 1000 ㎡ | 4m | |
3000 | 30x50m | 1500 ㎡ | 4m |
Kedered roof fabric and sidewalls provide weather-proof tight coverings.
Bar tensioning roof & sidewalls system.
Different brand fabric for option: China Fabric,Ferrari,Sioen,Verseidag.
6. Tent Accessories Options
1) White PVC cover(roof + sidewalls)
2) Clear PVC cover(roof + sidewalls)
3) White PVC wall with clear windows
4) Wall: Glass wall with windows, Sandwich walls, ABS walls, Steel panel walls
5) Door: glass door, metal door, shutter door, sliding door, etc
6) Flooring system
7) Lining and curtain
8) Other suppliers, such as door canopy, chairs, tables, lighting, air condition, etc
7. Tent client feedback
8. packing and shipping
Aluminum frame packed in membrane film;
Hardware packed in woven bag;
Roof and sidewall in professional PVC carry bag;
Customized package.
9. Super Order Process
1. Contact with Super sales team
↓
2. Provide size and usage information to Super sales team
↓
3. Super sales team will Offer design and quote
↓
4. Confirm design and quote
↓
5. Confirm all details and sign a contract
↓
6. Deposit Payment 30%
↓
7. Confirm 3D drawing
↓
8. Start production (Lead time 25 days)
↓
9. Track production and feedback
↓
10. Finish Production
↓
11. Inspect tent quality
↓
12. Balance payment
↓
13. Arrange shipment Yes (Super Arrange)
↓ No (Arranged by buyer)
14. Guide installation Yes (Arrange skilled supervisor)
↓ No (Set up by buyer)
15. Offer After-sale service and follow up for 5 years
