Product Details:
|
|
| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | China Tent |
| Certification: | ISO 9001:2012,SGS,CFM,NFPA,IFAI,etc. |
| Model Number: | CHINATENT00032 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Price: | From 30 USD / sqm |
| Packaging Details: | 1.aluminum frame packed in membrane film; 2.hardware packed in solid carton box; 3.roof and sidewall in professional PVC carry bag; 4.customized package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Fixing Solution: | Ground Anchor, Expandable Bolt, Weight Plate, Etc. | Frame: | Aluminum |
|---|---|---|---|
| Wind Resistance: | 100 Km/h | Side Wall: | PVC Walls,glass Wall,ABS Wall,sandwich Panel Wall,etc. |
| Temperature Resistance: | -30 Degree Celsius ~ +70 Degree Celsius | Roof Cover: | 850g/sqm Double PVC-coated Polyester Textile |
| High Light: | 50m Temporary Warehouse Tent,50m Aluminum Warehouse Tent,850g/sqm Warehouse Tent |
||
Product Description

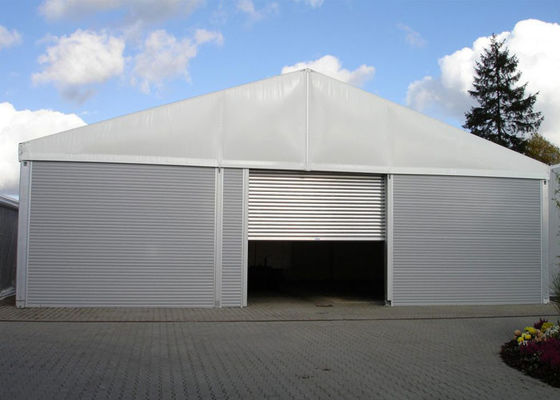

Big Large Outdoor White Temporary Industry Warehouse Storage Aluminum Structure PVC Canopy A Shape Tent
1. Application of warehouse tent
With the arrival of the business season, many manufacturers of the original planning of the storage space has been unable to meet the demand, which requires storage shelter through the expansion of temporary space for storage, and tents as temporary warehouse most commonly used, what is its Advantage?
Specifications and diverse, to meet the needs of different warehousing
Without approval, can quickly build the installation
Long life, can be repeated use
Cost reduction, efficient low-cost program
2. Specifications of Our Wedding Party Tents
(1) Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
(2) Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to
(3)DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
(4) Connector: strong hot-dip galvanized steel
(5) Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
(6) Wind load: max. 100km/h (can be reinforced)
(7) Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
(8) Easy to be assembled and dismantled, movable.
(9) No pole inside, 100% available interior space.
| Clear Width/m | Bay Distance/m | Eave Height/m | Ridge Height/m | Main Profile/m |
| 10 | 5 | 3/4/5/6 | 5.6 | 122x68x3 |
| 12 | 5 | 3/4/5/6 | 6.1 | 122x68x3 |
| 15 | 5 | 3/4/5/6 | 6.4 | 166x88x3 |
| 18 | 5 | 3/4/5/6 | 7.2 | 166x88x3 |
| 20 | 5 | 3/4/5/6 | 7.4 | 204x120x4.5 |
| 25 | 5 | 3/4/5/6 | 8.0 | 204x120x4.5 |
| 30 | 5 | 3/4/5/6 | 8.8 | 256x120x7.5 |
| 35 | 5 | 3/4/5/6 | 9.6 | 256x120x7.5 |
| 40 | 5 | 3/4/5/6 | 10.3 | 300x120x7.5 |
| 45 | 5 | 3/4/5/6 | 11.2 | 300x120x7.5 |
| 50 | 5 | 3/4/5/6 | 12 | 356x120x9.5 |
| The length can be extended by 5m each section such as 15m,20m,30m,40m, customized size is availbale | ||||
3. Fixing Methods of Our Tents
4. Accessories of Our Wedding Party Tents
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Wooden floor, glass door, glass wall, glass window, ABS hard wall, steel sandwich wall, ground anchors, anchor puller, weight plate, sidewalls with PVC-clear window, rain gutters, decoration ceilings and inside curtain, ramp, transport rack.
5. Packaging of Our Wedding Party Tents
(1)Aluminum frame packed in membrane film
(2)Hardware packed in solid carton box
(3)Roof and sidewall in professional PVC carry bag
6. Other Visual case
7. Get quote now
